Home > Products > > 2.58MW/5.015MWh Containerized Liquid cooling Energy Storage System

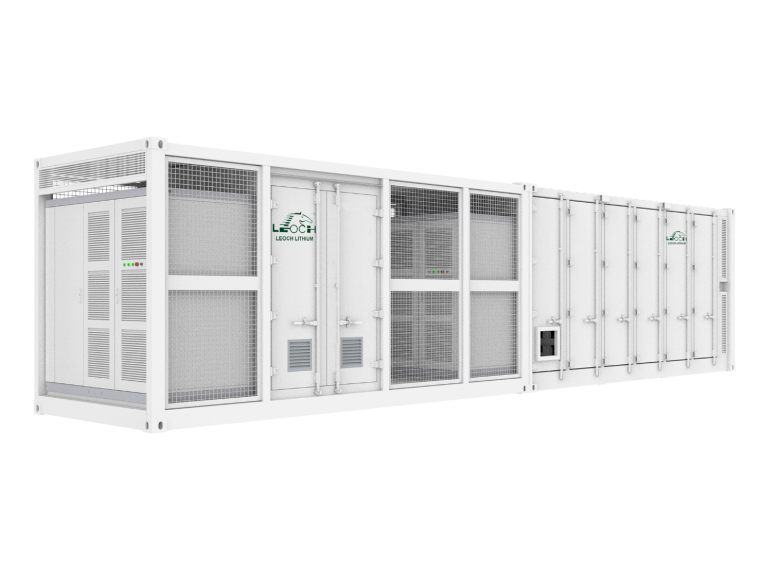

2.58MW/5.015MWh
Containerized Liquid cooling Energy Storage System

Adopts IP67 protection level design and liquid cooling temperature control system (real-time, balanced, efficient, energy-saving), extending battery life and enhancing safety.



With AC/DC integrated compartment design, it enables simple installation, intuitive operation and efficient maintenance.



Meets IP54 protection and C4 anticorrosive grade; multiple cabinet designs fit complex scenarios.



Supports parallel operation of multiple machines (grid-connected/off-grid) and optional AC side grid-connection for PV/diesel generators.


Product features
Features

High-Level Protection & Efficient Temperature Control

  • IP67 protection (resists dust, short-term water immersion) for multi-scenario use;

  • Liquid cooling system (real-time, balanced, efficient, energy-saving) to control battery temp, extend life, and boost safety.

Integrated Design & Easy O&M

  • Highly integrated architecture (AC/DC integrated compartment) for "ready-to-install-and-use" experience;

  • Intuitive interface, efficient daily O&M, reducing labor/time costs.

Strong Environmental Adaptability

  • Core module IP67, whole device IP54 & C4 anticorrosion (copes with humid/dusty/corrosive environments);

  • Multiple cabinet designs for flexible scenario matching.

Flexible Operation Modes

  • Supports multi-machine parallel, grid-connected/off-grid switching;

  • Optional AC-side grid connection (PV, diesel generators) for diversified energy complementary systems.


Product features
Features




High-Level Protection & Efficient Temperature Control

• IP67 protection (resists dust, short-term water immersion) for multi-scenario use

• Liquid cooling system (real-time, balanced, efficient, energy-saving) to control battery temp, extend life, and boost safety.


Integrated Design & Easy O&M

• Highly integrated architecture (AC/DC integrated compartment) for "ready-to-install-and-use" experience.

• Intuitive interface, efficient daily O&M, reducing labor/time costs


Strong Environmental Adaptability

• Core module IP67, whole device IP54 & C4 anticorrosion (copes with humid/dusty/corrosive environments).

• Multiple cabinet designs for flexible scenario matching.


Flexible Operation Modes

•Supports multi-machine parallel, grid-connected/off-grid switching.

•Optional AC-side grid connection (PV, diesel generators) for diversified energy complementary systems.

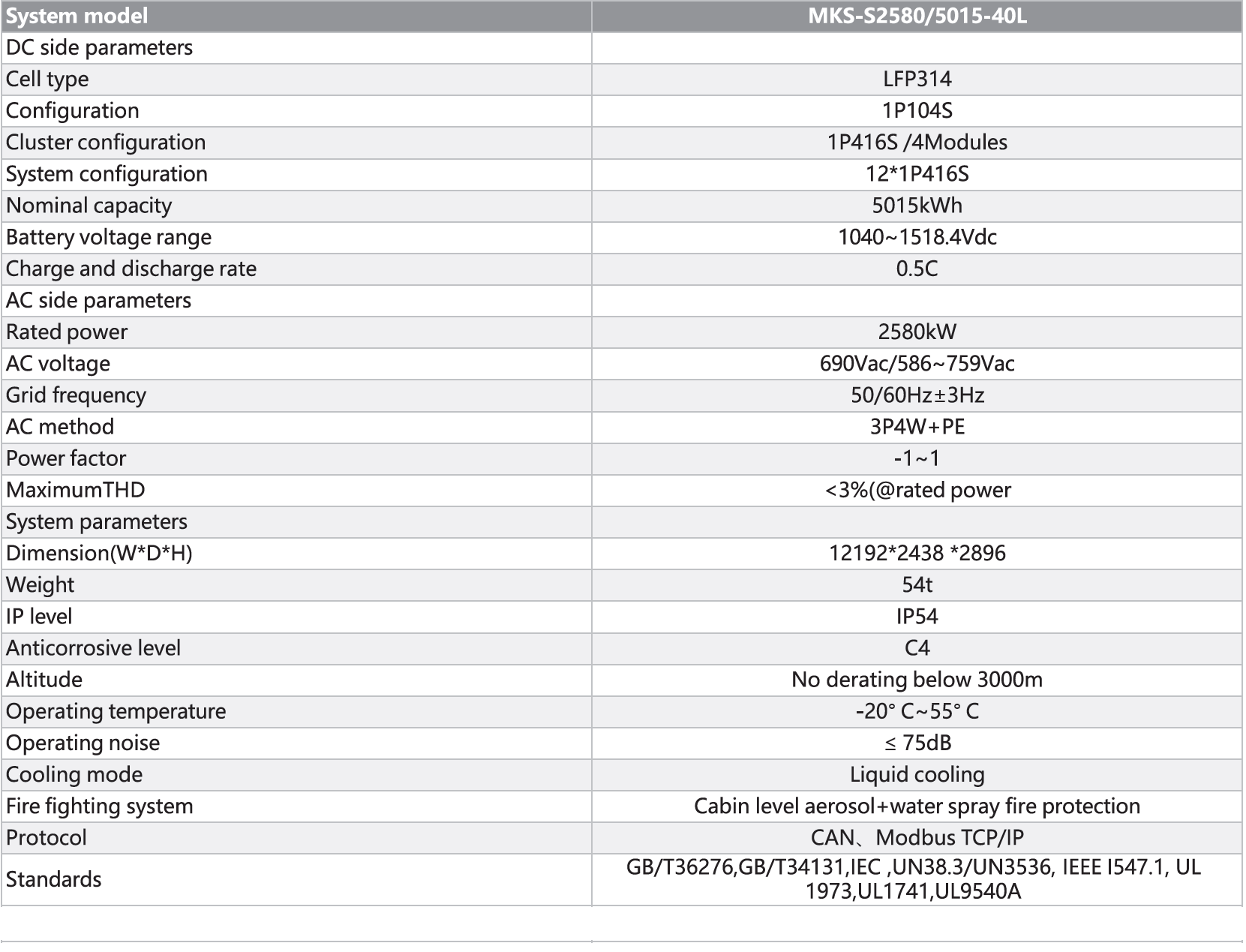

Product parameters
Parameters

Download
2.58MW/5.015MWh
Containerized Liquid cooling Energy Storage System
PDF
