48V20A Charger
The product is mainly used for supporting charging of lead-acid battery products such as popular electric golf course vehicles, electric sightseeing vehicles, electric Dune buggy, and electric off-road vehicles.
This series of products is divided into four series: 24V/36V/48V/72V lead-acid battery charging and maintenance.

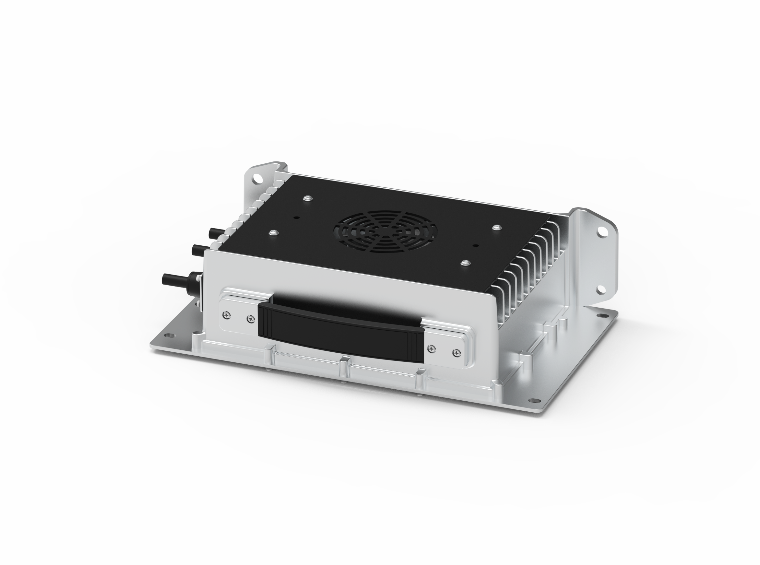

The product is designed with a die-cast aluminum casing, which can be used in car or portable applications and meets the lP65 waterproof and dustproof rating.
The AC wire adopts a product tail style pluggable design, which can adapt to different power plugs from countries around the world.
Equipped with MCU microprocessor to control the charging LED indicator light, with a red light state during charging and a green light state when fully charged.
Model | LC-2659 |
AC input voltage | 100Vac~240Vac |
AC input frequency | 50~60Hz |
AC input power | 1400W |
Output voltage range | 48Vdc |
Soft charging current | 14V-44±2V 16A |
Bulk charging current | 44-56.4V±2V 19A |
Efficiency | 90% |
Protection function | Overload, Overcharge, Short circuit, Reverse polarity |
Working temperature | -20°C~50°C |
Storage temperature | -40°C~85°C |
Net weight | 5KG |
Dimension (mm) | 326.5*194*88mm |
Certification | FCC |
Waterproof level | IP67 |
