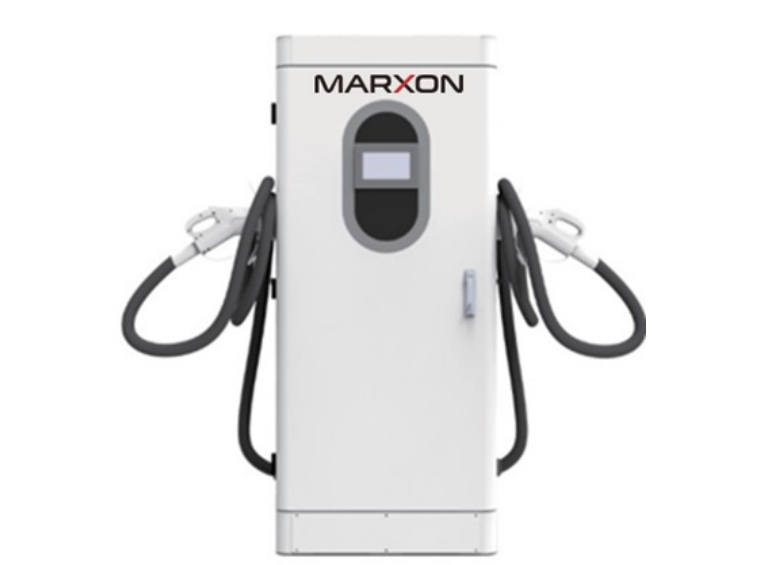

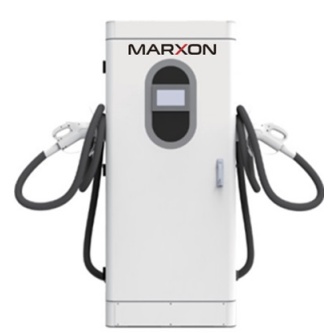

Appearance Structure

Installation method

Floor-standing

Wiring method

Lower inlet and lower outlet

Product size

1620*750*560mm

Human-computer interaction

7-inch high-brightness color touch   screen

Cable Length

5M

Accuracy

Level 1.0

Electrical Parameters

Input Voltage

AC380V

input frequency

45~60Hz

Rated power

60kW

80kW

120kW

160kW

Output voltage

DC200-1000V

Current limiting protection value

110%

Output current

0-200A/0-250A

Voltage stabilization accuracy

<0.5%

Stabilized current precision

<1%

Efficiency

0.95

Power factor

0.99 (Above 50% load）

Charge mode

Automatic charging / Select fixed   electricity amount / Select fixed amount of money / Select fixed time

Charge Method

Charge by card swiping/charge by   scanning code/charge by password

Networking method

Ethernet/4G

Operation mode

Offline billing / No offline billing   / Online billing

Execution standards

GB/ T20234、GB/   Tl 8487 、GB/ T27930、NB/ T33008 、NB/ T33002

Protection function

Charging gun temperature detection,   overvoltage protection, undervoltage protection, overload protection, short   circuit protection, grounding protection, overtemperature protection, low   temperature protection, insulation monitoring protection, polarity reversal protection,   lightning protection, emergency stop protection, and electric leakage   protection

Environmental Indicators

Operation temperature

-20°C~+50°C

Working humidity

5%~ 95％（No frost）

Working altitude

2000m

Protection grade

IP54

Cooling method

Air Cooling

Noise control

<=60dB

MTBF

30000h
